If you’ve had solar panels for a year or two, you’ve probably noticed the frustrating pattern: your system generates plenty of electricity on a bright afternoon, but most of it flows straight back to the grid while you’re out at work. You get a modest Smart Export Guarantee payment, but you’re still buying expensive electricity in the evening. Adding a battery changes that equation entirely. Real-world data shows a 4.2kWp system with storage saved £5,498 in a single year, bringing the effective cost of electricity down to around 3p per kWh. This guide walks you through every stage of the process, from checking whether your current setup is compatible to verifying the installation is working as it should.
Table of Contents
- Assessing your solar system and battery compatibility
- All tools, equipment and requirements
- Step-by-step: How to add a battery to your existing solar system
- Verification, payback and troubleshooting
- What most guides miss about retrofitting solar batteries
- Upgrade your solar with expert help
- Frequently asked questions
Key Takeaways
| Point | Details |
|---|---|
| Compatibility is crucial | Not every solar system takes a battery, so check your specs and inverter type first. |
| Plan for safety and compliance | Proper tools, safety gear, and following UK rules are essential for a successful battery retrofit. |
| Expect 6–9 years to payback | Most UK homeowners recover the battery investment in under a decade through savings. |
| Install quality matters most | A skilled installer and reputable battery bring better returns than chasing cheapest kit. |

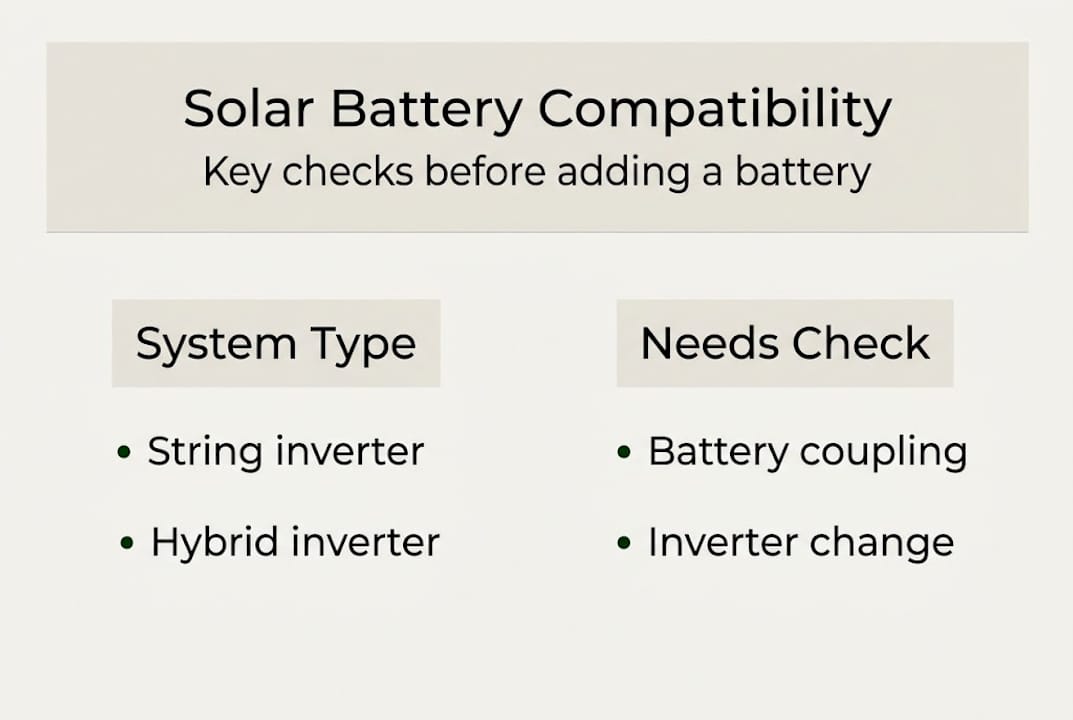

Assessing your solar system and battery compatibility
Before you order anything or call a single installer, you need to understand what you’re already working with. Not every existing solar system accepts a battery in the same way, and the differences matter more than most people realise.
The first thing to check is your inverter type. Most UK homes installed before 2020 have a string inverter, which converts DC electricity from your panels into AC electricity for your home. These systems are perfectly capable of accepting a battery, but they typically require an AC-coupled approach, meaning the battery has its own inverter and connects on the AC side of your system. Homes with newer hybrid inverters can accept a battery on the DC side, which is generally more efficient. You can explore the different solar system types to understand where your setup sits before speaking to anyone.
Here’s a quick summary of what to record before any assessment:
- Inverter make, model, and age (found on the unit itself or your installation paperwork)
- System size in kWp (kilowatt-peak, usually on your MCS certificate)
- Annual generation in kWh (from your monitoring app or generation meter)
- Typical daily usage in kWh (from your electricity bill or smart meter)
- Available space for a battery unit (garage wall, utility room, or outdoors)
| System type | Battery coupling | Inverter change needed? |
|---|---|---|
| String inverter (older) | AC coupled | Usually no |
| Hybrid inverter | DC coupled | No |
| Microinverter system | AC coupled | No |
| String inverter (newer, compatible) | DC coupled | Sometimes |
The size of battery you need depends on your evening and overnight consumption. A typical UK household uses 8 to 12 kWh per day, but your solar generation may only cover 4 to 6 kWh of that directly. A battery in the 5 to 10 kWh range is the sweet spot for most homes. For smaller properties, there are purpose-built batteries for small homes worth reviewing before you commit to a larger unit.
Pro Tip: Pull your last 12 months of electricity bills and note your average monthly import. If you’re importing more than 200 kWh per month during summer, a battery will make a meaningful difference to your bills.
A professional assessment from an MCS-certified installer will confirm compatibility, flag any wiring issues, and recommend the right battery chemistry for your usage profile. Lithium iron phosphate (LiFePO4) batteries are the most common choice for UK retrofits due to their safety record and long cycle life. Your installer can also advise on hybrid inverter options if an inverter upgrade makes sense for your situation.

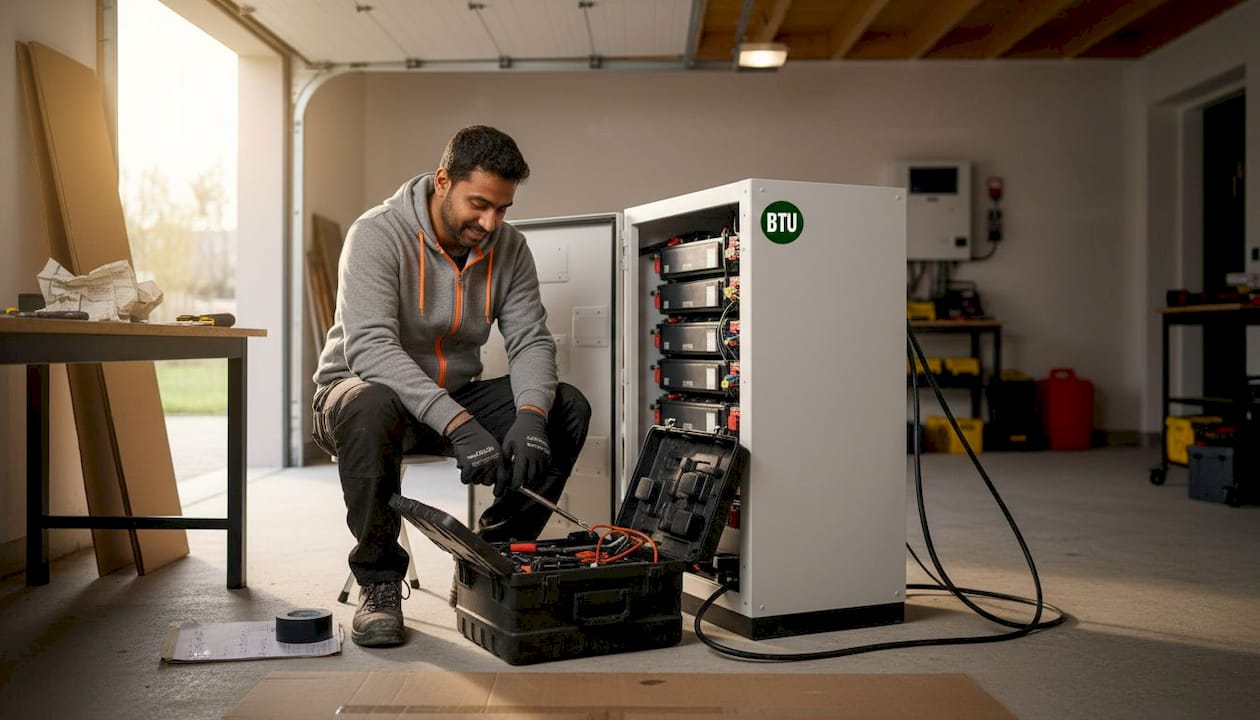

All tools, equipment and requirements
Once you’ve confirmed compatibility, the next step is understanding exactly what the installation involves in terms of materials, qualifications, and legal obligations. This is where many homeowners are caught off guard.
Here’s a summary of what a typical battery retrofit requires:
| Item | Purpose | Supplied by |
|---|---|---|
| Battery unit (e.g. 5–10 kWh) | Energy storage | Installer or homeowner |
| Battery inverter/charger | AC coupling or DC integration | Installer |
| AC isolator switch | Safe disconnection | Installer |
| DC isolator (if DC coupled) | Safe disconnection | Installer |
| CT clamp / energy meter | Monitors grid import/export | Installer |
| Cabling and conduit | Safe wiring runs | Installer |
| Consumer unit breaker | Circuit protection | Installer |
From a safety and legal standpoint, the following are non-negotiable in the UK:
- MCS-certified installer: Required if you want to remain eligible for the Smart Export Guarantee and maintain your system warranty
- Part P compliance: Any electrical work in a UK home must comply with Part P of the Building Regulations, which typically means a certified electrician signs off the installation
- DNO notification: In most cases, adding a battery to an existing solar system requires notifying your Distribution Network Operator. For systems under 3.68 kW export capacity, this is often a simple G98 notification. Larger systems require a G99 application, which takes longer to process
- Building insurance notification: Tell your insurer before installation. Some policies require notification of any significant electrical work
The battery storage guide covers the regulatory side in more detail if you want to go deeper on DNO requirements and MCS obligations before getting quotes.
On the question of chemistry, LiFePO4 versus standard lithium-ion is worth understanding. LiFePO4 is thermally stable, has a longer usable lifespan (often 4,000 to 6,000 cycles), and is considered safer for indoor installation. Standard lithium-ion NMC batteries are more energy-dense but carry a slightly higher thermal risk. Most UK installers now default to LiFePO4 for home use.
Pro Tip: Get at least three quotes from MCS-certified installers. Ask each one to specify the battery chemistry, cycle life rating, and whether the warranty covers capacity degradation. A payback of 6 to 9 years is realistic for most UK retrofits, so the quality of the equipment matters as much as the upfront price.
Step-by-step: How to add a battery to your existing solar system
With your compatibility check done and your installer chosen, here’s what the installation process actually looks like from start to finish.
-
System isolation and safety shutdown. Your installer will isolate your solar array, switch off the inverter, and confirm there is no live voltage before any work begins. This is not a step to rush or skip.
-
Determine AC or DC coupling. Based on your inverter type and the battery chosen, your installer will confirm the coupling method. Understanding the difference between AC vs DC coupled batteries helps you follow the process intelligently. AC coupling is more flexible for older systems. DC coupling is more efficient but requires a compatible hybrid inverter.
-
Mount the battery unit. The battery is fixed to a wall, typically in a garage, utility room, or purpose-built outdoor enclosure. It must be mounted away from direct heat sources and within the temperature range specified by the manufacturer, usually 0°C to 45°C.
-
Run cabling and connect the battery. Your installer runs appropriately rated cable between the battery, the inverter, and the consumer unit. A CT clamp is fitted around your main supply cable so the system can monitor what you’re importing and exporting in real time.
-
Update firmware and configure the system. Modern battery systems communicate with your inverter and sometimes your smart meter via Wi-Fi or a dedicated protocol. Your installer will update firmware, set charge and discharge schedules, and configure any time-of-use tariff settings if you’re on an Octopus Agile or similar plan.
-
Re-commission and test. With everything connected, the system is powered back up and tested across a full charge and discharge cycle. Your installer should confirm the battery is charging from solar, discharging to the home correctly, and not unexpectedly importing from the grid.
A well-configured battery system should feel invisible. Your home just uses cheaper electricity, and you only notice it when you check the app and see how little you’ve imported.
The financial impact can be significant. Real-world figures show that a 4.2kWp system with three Powerwalls saved £5,498 in 2025 across 17.3 MWh of usage. That’s not a best-case scenario; it reflects consistent daily use and smart tariff management. You can read more about how battery storage boosts solar savings to understand what drives those numbers.
Pro Tip: Ask your installer to set a minimum battery reserve of 10 to 20%. This keeps a buffer available for power cuts and backup scenarios without meaningfully affecting your daily savings.
Verification, payback and troubleshooting
Once your battery is live, the work isn’t quite finished. Verifying the system is performing correctly in the first few weeks saves a lot of frustration later.
Here’s a simple checklist to run through in the first 7 days:
- Battery charges fully from solar on a clear day
- Battery discharges to zero (or your set reserve) before midnight
- Grid import drops noticeably compared to the same period last month
- No error codes or warning lights on the inverter or battery unit
- Monitoring app shows accurate generation, consumption, and state of charge data
- DNO notification has been acknowledged (keep a copy)
For payback, the maths is straightforward. If your battery cost £4,000 installed and it saves you £500 per year in grid imports, your payback is 8 years. That sits squarely within the 6 to 9 year typical range for UK battery retrofits. If you’re on a time-of-use tariff and charging cheaply overnight as well as from solar, payback can shorten to 5 to 6 years. You can model your own figures using the tools in our guide to home battery payback.
| Common issue | Likely cause | Fix |
|---|---|---|
| Battery not charging from solar | CT clamp wired incorrectly | Installer to recheck clamp position |
| Unexpected grid import at night | Discharge limit set too high | Adjust reserve setting in app |
| Inverter communication error | Firmware mismatch | Update inverter and battery firmware |
| Battery capacity dropping quickly | Cell imbalance or fault | Contact installer under warranty |
| App not showing real-time data | Wi-Fi or gateway issue | Reboot gateway, check router settings |
If issues persist beyond the first month, contact your installer under the installation warranty. MCS-certified installers are required to provide a minimum workmanship warranty. Battery units themselves typically carry a 10-year manufacturer warranty covering capacity retention, usually guaranteed to 70 to 80% of original capacity.
For ongoing performance, small habit changes make a real difference. Running the dishwasher or washing machine during peak solar hours, rather than in the evening, means your battery stays fuller for overnight use. Our guide to maximising solar self-consumption covers these adjustments in practical detail.
What most guides miss about retrofitting solar batteries
Most articles about adding a battery to your solar system focus almost entirely on the hardware and the payback period. That’s useful, but it’s only part of the picture.
The payback period is a financial metric, not a measure of value. A battery that pays back in 8 years also means 8 years of reduced dependence on the grid, 8 years of protection against rising electricity prices, and 8 years of knowing your home keeps running during a power cut. That peace of mind has real worth, even if it doesn’t appear in a spreadsheet.
Installer quality matters far more than equipment specification. A mediocre installer fitting a premium battery will underperform a skilled installer fitting a mid-range unit, every time. The configuration, the CT clamp placement, the firmware settings, and the commissioning process all determine whether your system actually delivers. Ask for references and check MCS registration before you sign anything.
Battery degradation is also underplayed. A 10 kWh battery that degrades to 75% capacity after 10 years is effectively a 7.5 kWh battery. Factor that into your payback projections. It doesn’t make the investment wrong, but it makes the numbers more honest.
Finally, the biggest savings often come from behaviour, not hardware. The homeowners who get the most from their batteries are the ones who shift loads, monitor their usage, and adjust their tariff settings seasonally. The battery is the tool; you are the operator. For those considering more radical energy independence, it’s worth reading about off-grid battery alternatives to understand where the technology is heading.
Upgrade your solar with expert help
Adding a battery to your existing solar system is one of the most impactful upgrades you can make as a UK homeowner. If you’re ready to go further, Beyond The Urban has the resources to support every stage of your decision. Start with our in-depth guide to find the right storage solution for your home’s size and usage profile. If you’re thinking about the broader picture, our guide on solar panels and home value explores how energy upgrades affect property worth in the UK market. You’ll find everything in one place at our solar hub.
Frequently asked questions
Can any solar system be upgraded with a battery?
Most modern solar systems can be retrofitted with battery storage, but compatibility depends on your inverter type and existing wiring. A 4.2kWp system with storage is a good example of a successful retrofit delivering substantial savings.
What is the typical payback period for a home battery in the UK?
Most UK homeowners see payback between 6 and 9 years, though this shortens significantly if you’re on a time-of-use tariff and charging the battery cheaply overnight as well as from solar.
Does adding a battery system increase home value?
A battery-equipped home is more energy efficient and resilient, which can make it more attractive to buyers and potentially increase its market value, particularly as energy costs remain high.
Is battery installation a DIY job or do I need a professional?
Professional installation by an MCS-certified electrician is strongly recommended, as it ensures Part P compliance, protects your Smart Export Guarantee eligibility, and keeps your equipment warranty valid.
What type of battery is best for UK homes?
Lithium iron phosphate (LiFePO4) batteries are generally the preferred choice for UK home installations due to their long cycle life, thermal stability, and suitability for indoor mounting.
