A self-sufficient house is one that meets most or all of its energy needs through smart design and renewable systems, primarily solar power paired with efficient energy use. The key to getting this right is sequence: reduce what your home needs first, then size your solar and battery systems to cover what remains. This approach, known as the fabric-first method, is endorsed by the Royal Institute of British Architects (RIBA) and is the most cost-effective route to genuine energy independence for UK and European homeowners.

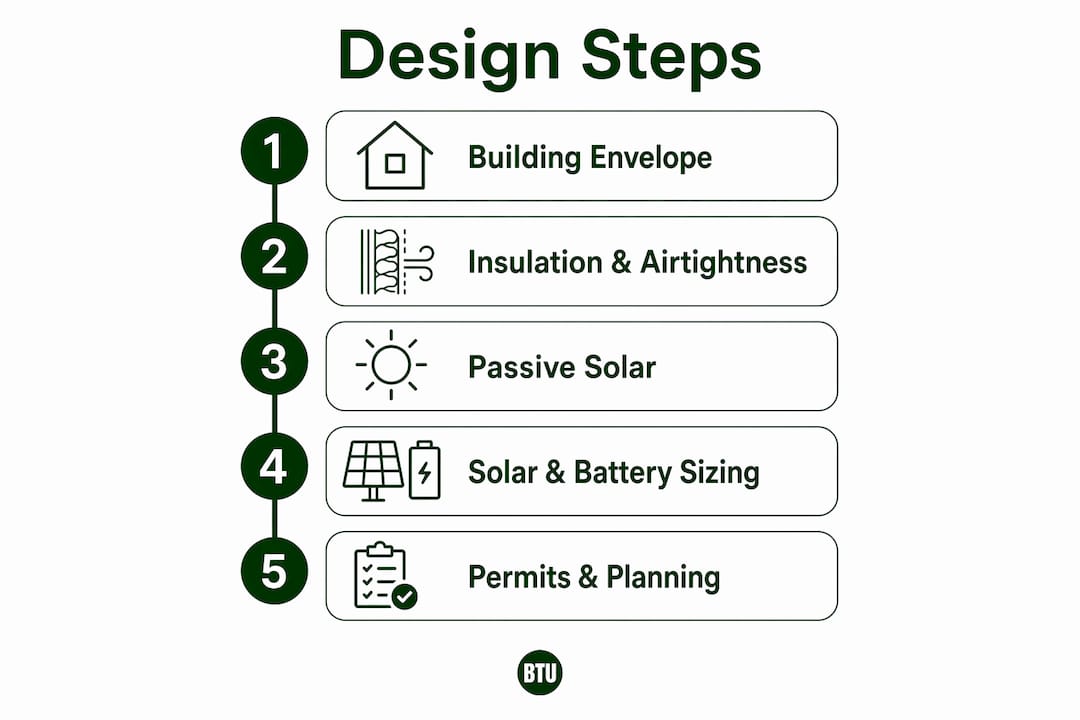

How to design a self-sufficient house: start with the building envelope
The fabric-first approach means prioritising your building’s shell before you think about solar panels. Insulation, airtightness, and glazing orientation are the three pillars. Get these right and you can reduce energy demand by 30–60%, which directly shrinks the size and cost of the solar system you will need. Heating accounts for roughly 60% of energy use in a typical UK home, so cutting that load first is where the real savings live.
Insulation and airtightness

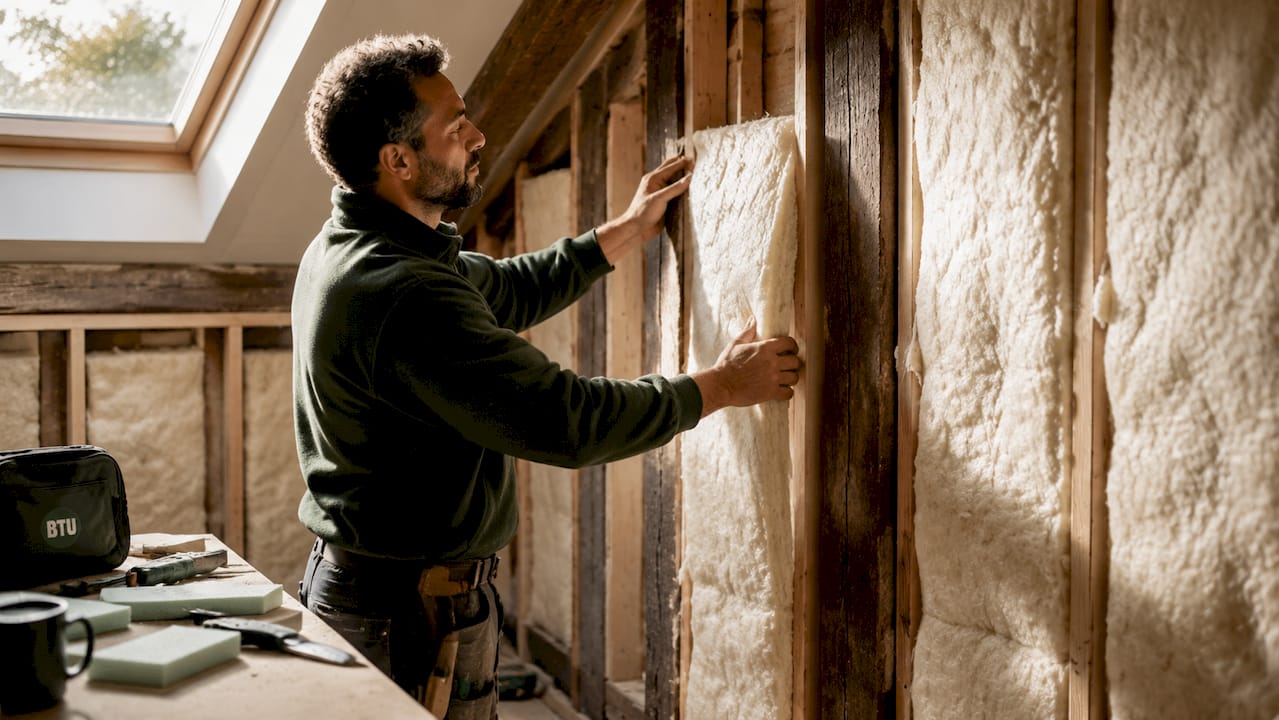

High-performance insulation targets high R-values across walls, roof, and floor. In the UK and northern Europe, this typically means 200–300mm of mineral wool or rigid foam in the roof, and external wall insulation or cavity fill for existing properties. Airtightness is equally critical. A leaky building wastes heat regardless of how much insulation you add.
Airtight construction paired with mechanical ventilation keeps indoor air quality high while preventing heat loss. Heat recovery ventilation (HRV) units are the standard choice in well-insulated UK and EU homes. They extract stale air and use its warmth to pre-heat incoming fresh air, recovering up to 90% of heat that would otherwise be lost.
For a deeper look at insulation choices suited to UK and EU climates, the UK insulation guide for 2026 covers material options and performance targets in detail.
Passive solar design
South-facing glazing captures free heat and daylight during winter months. Thermal mass, such as concrete floors or brick internal walls, absorbs that heat during the day and releases it slowly at night. Overhanging eaves or external shading devices prevent overheating in summer without blocking low winter sun.
These passive features work together as a system. A south-facing window without thermal mass behind it will cause overheating. Thermal mass without south-facing glazing has nothing to absorb. The design decisions must be made together, not in isolation.
- Insulation: Target high R-values in roof, walls, and floor; use mineral wool, rigid foam, or natural alternatives such as wood fibre
- Airtightness: Aim for low air permeability; seal all junctions, penetrations, and window frames
- Glazing: Maximise south-facing glass; minimise north-facing windows to reduce heat loss
- Thermal mass: Use dense materials such as concrete, brick, or stone on internal surfaces exposed to sunlight
- Shading: Design overhangs or use external blinds to block high summer sun while admitting low winter sun
- Ventilation: Install an HRV unit to maintain air quality in an airtight home
Pro Tip: Before specifying insulation thickness, get a simple heat loss calculation done for your specific property. This tells you exactly how much heating load remains after fabric improvements, which directly determines how many solar panels and how much battery storage you actually need.
Reducing heating demand via a high-performance envelope is more economical than simply adding more solar panels. Every kilowatt-hour you avoid needing is cheaper than generating and storing it.
How do you calculate the right solar and battery size?
Once your building envelope is performing well, you can calculate your remaining energy needs accurately. This is where many self-sufficient home projects go wrong: people size their solar systems against a poorly insulated house, then spend far more than necessary.
Step-by-step load assessment
- List every appliance in your home and note its wattage and daily hours of use. Your electricity supplier’s bills give you a useful starting point, but appliance-level detail is more accurate.
- Calculate daily energy use in kilowatt-hours (kWh) by multiplying wattage by hours of use for each appliance, then total them up.
- Adjust for seasonal variation. UK winters mean shorter days and lower solar output. Your worst-case daily demand figure is the one that matters for sizing.
- Determine your autonomy target. Energy autonomy sizing should aim for 2–5 days of backup using LiFePO4 batteries. This covers cloudy periods without grid dependency.
- Size your solar array based on peak sun hours at your location. Southern England averages around 3.5–4 peak sun hours per day in winter; Scotland and northern Europe receive less. Divide your daily demand by peak sun hours to get the minimum panel capacity in kilowatts.
For a thorough walkthrough of this process, Beyondtheurban’s guide on solar system load calculations takes you through each step with worked examples.
Battery chemistry comparison
| Battery type | Cycle life | Depth of discharge | Best use case |
|---|---|---|---|
| LiFePO4 (lithium iron phosphate) | 3,000–6,000 cycles | 80–90% | Self-sufficient homes, daily cycling |
| NMC lithium-ion | 1,000–2,000 cycles | 80% | Moderate cycling, cost-sensitive builds |
| Lead-acid (AGM/gel) | 300–500 cycles | 50% | Low-budget backup, infrequent cycling |
LiFePO4 is the preferred choice for self-sufficient homes because its long cycle life and deep discharge capability make it the most cost-effective option over a 10–15 year horizon. For more detail on choosing the right chemistry, the solar battery storage guide covers types, sizing, and real-world performance.
Pro Tip: Always size your battery bank for 2–5 days of autonomy based on your winter daily demand, not your annual average. A system that works in July but fails in december is not a self-sufficient system.
What permits and planning steps do you need in the UK and EU?
Planning and permitting is the stage where projects stall most often. Getting ahead of it early saves weeks of delay and protects your budget.
Permit lead times for new builds or significant renovations typically run 2–12 weeks. That is a wide range, and local authority workloads, site complexity, and the type of work all affect where you land within it. Schedule permit applications before you finalise contractor bookings.
Key planning and regulatory points to address early:
- Solar panel planning permission: In England, solar panels on a dwelling are usually permitted development, meaning no formal planning application is required, provided they meet size and visual impact criteria. Scotland, Wales, and Northern Ireland have slightly different rules. Always confirm with your local planning authority before installation.
- MCS certification: Solar installers must hold MCS (Microgeneration Certification Scheme) certification for you to access the Smart Export Guarantee (SEG), which pays you for surplus electricity exported to the grid. Using a non-MCS installer disqualifies you from SEG payments.
- DNO notification: Your Distribution Network Operator (DNO) must be notified of any solar installation above 3.68kW per phase. Larger systems require formal DNO approval, which can add several weeks to your timeline.
- Building regulations: Significant structural work, new electrical installations, and changes to the thermal envelope all require building regulations approval in the UK. Your architect or structural engineer should confirm which notifications apply.
- Budget contingency: Budget a 10–20% contingency for unforeseen permitting and regulatory costs. Local authority requirements vary, and engineering adjustments during construction are common.
A thorough site assessment before you submit any application is worth the time. Check solar access carefully: nearby trees, neighbouring buildings, and roof orientation all affect how much your panels will generate. A roof that looks south-facing on a map may be partially shaded for several hours each day.
How do you integrate solar panels and batteries without common mistakes?
The most frequent mistake in self-sufficient home design is sizing the solar system against annual average output rather than worst-case winter performance. Solar systems must be sized for worst-case winter scenarios to ensure reliable energy supply year-round. A system that covers your needs in june but falls short in january is not delivering self-sufficiency.
Common pitfalls and how to avoid them:
- Undersizing for winter: Use december or january peak sun hours for your location when calculating panel capacity. Do not use annual averages.
- Oversizing without need: If your fabric-first improvements have reduced demand significantly, you may need far fewer panels than you initially assumed. Recalculate after envelope upgrades.
- Ignoring shading: Even partial shading on one panel can reduce output across a string. Use micro-inverters or DC optimisers if shading is unavoidable.
- Choosing the wrong battery chemistry: Lead-acid batteries are cheaper upfront but have a shorter lifespan and lower usable capacity. LiFePO4 delivers better value over a 10-year period.
- Skipping thermal mass in the solar design: Solar panels generate electricity, but thermal mass in your building fabric reduces the heating load those panels need to cover. Both work together.
- Underestimating system complexity: Adding more components, such as multiple battery banks, hybrid inverters, and backup generators, increases the chance of configuration errors. Keep the system as simple as your autonomy target allows.
Prioritising the building envelope before solar sizing can reduce upfront capital costs by thousands and simplify the entire system. A well-insulated home with a modest 4kW solar array and a 10kWh LiFePO4 battery can achieve genuine energy independence in the UK. The same level of independence in a poorly insulated home might require double the panel capacity and battery storage.
One more consideration worth raising: true sustainable home design includes occupant health, with non-toxic and VOC-free materials chosen alongside energy systems. Low-toxicity insulation, natural paints, and formaldehyde-free boards all contribute to a healthier indoor environment. This is not a luxury consideration. It is part of what makes a home genuinely liveable for the long term.
Key takeaways
Designing a self-sufficient house requires reducing energy demand through passive design first, then sizing solar panels and LiFePO4 battery storage to cover what remains.
| Point | Details |
|---|---|
| Fabric first, solar second | Reduce heating demand by 30–60% through insulation and airtightness before sizing any solar system. |
| Size for winter, not averages | Use worst-case winter peak sun hours to calculate panel and battery capacity for year-round reliability. |
| LiFePO4 for home storage | Choose LiFePO4 batteries for their long cycle life and deep discharge capability over a 10–15 year horizon. |
| Plan permits early | Allow 2–12 weeks for permits and notify your DNO for systems above 3.68kW per phase. |
| Budget a contingency | Reserve 10–20% of your project budget for unforeseen regulatory and engineering costs. |
Why I think most self-sufficient home projects get the order wrong
Most homeowners I speak with arrive at the solar question first. They want to know how many panels they need, what battery to buy, and how quickly it will pay back. Those are all valid questions, but they are the wrong starting point.
The building envelope is where the real leverage is. A home that needs 8,000kWh per year to heat and power requires a very different solar system than one that needs 3,500kWh. The gap between those two figures is not filled by panels. It is filled by insulation, airtightness, and thoughtful orientation. Getting that right first means your solar system can be smaller, simpler, and cheaper.
The other thing I have noticed is that people underestimate how much the UK climate rewards a fabric-first approach. We do not have the solar resource of southern Spain, but we do have a moderate climate where a well-insulated home stays comfortable with very little active heating. That is a genuine advantage if you design for it.
My honest advice: spend as much time and budget on your building envelope as you do on your solar system. The two work together, but the envelope sets the ceiling on what your solar system needs to achieve. Get that ceiling as low as possible, and everything else becomes more manageable.
Beyondtheurban solar resources for self-sufficient homes
Beyondtheurban covers the full picture of solar energy and battery storage for UK and European homeowners. Whether you are at the planning stage or ready to size your system, the practical guide to solar energy for UK homes is a solid starting point. It covers how solar panels work, what affects output, and how to match a system to your actual energy needs.
For battery storage specifically, the home battery storage guide walks through the pros, cons, and buying considerations in plain language. If you want to go deeper on sizing, the solar system sizing guide takes you through the full calculation process with worked examples suited to UK conditions. All three resources are free and written for homeowners, not engineers.
FAQ
What is a fabric-first approach in home design?
The fabric-first approach prioritises improving a building’s insulation, airtightness, and glazing before installing renewable energy systems. It reduces energy demand by 30–60%, which lowers the size and cost of any solar system needed.
How many days of battery backup does a self-sufficient home need?
A self-sufficient home should target 2–5 days of battery backup to cover cloudy periods without grid dependency. LiFePO4 batteries are the recommended chemistry for this level of daily cycling.
Do I need planning permission for solar panels in the UK?
Solar panels on most UK dwellings are permitted development and do not require a planning application, provided they meet size and visual impact criteria. Always confirm with your local planning authority, as rules differ across England, Scotland, Wales, and Northern Ireland.
Why should I size solar panels for winter rather than annual averages?
Winter delivers the shortest days and lowest solar output of the year. A system sized on annual averages will fall short during december and january, when you need it most. Sizing for worst-case winter conditions guarantees reliable supply year-round.
What is MCS certification and why does it matter?
MCS (Microgeneration Certification Scheme) is a UK quality standard for renewable energy installers. Using an MCS-certified installer is a requirement for accessing the Smart Export Guarantee (SEG), which pays you for surplus solar electricity exported to the grid.
