Many homeowners believe solar energy means expensive photovoltaic panels covering their roof. Yet there’s a simpler approach that harnesses sunlight through smart architectural design rather than technology. Passive solar design uses building orientation, materials, and window placement to naturally heat and light your home, slashing energy bills without complex systems. This guide explains how passive solar principles work in UK and European climates, what design elements matter most, and how you can apply these strategies to reduce heating costs and improve year-round comfort in your property.
Table of Contents
- Understanding The Basics Of Passive Solar Design
- Key Components And Design Elements In Residential Passive Solar Homes
- Benefits And Limitations Of Passive Solar Design In UK And European Climates
- Applying Passive Solar Design Principles To Your Home Or Apartment
- Explore Solar Solutions With Beyond The Urban
- Frequently Asked Questions
Key takeaways
| Point | Details |
|---|---|
| Architectural approach | Passive solar design uses building orientation and materials to capture and distribute sunlight naturally. |
| Cost savings | Reduces heating and lighting demand, lowering energy bills without mechanical systems. |
| Core elements | Relies on south-facing windows, thermal mass, insulation, and adjustable shading. |
| Climate suitability | Works effectively in UK and European climates with proper design adaptations. |
| Complementary tech | Combining passive design with active solar panels maximises overall energy efficiency. |
Understanding the basics of passive solar design
Passive solar design is an architectural strategy that captures, stores, and distributes solar energy through a building’s structure rather than mechanical equipment. Unlike active solar systems with panels and inverters, passive solar design involves orienting buildings to maximise solar gain and using materials that absorb, store and distribute heat naturally. The sun’s path across the sky determines how you position windows, walls, and thermal mass to optimise heat collection during winter whilst avoiding overheating in summer.
The fundamental principle centres on orientation. In the Northern Hemisphere, south-facing walls and windows receive the most direct sunlight throughout the day. Positioning your main glazing on the southern elevation allows maximum solar gain during colder months when the sun sits lower in the sky. North-facing windows provide consistent daylight without excessive heat, whilst east and west orientations require careful shading to prevent summer overheating.
Thermal mass plays a crucial role in storing captured heat. Materials like concrete floors, brick walls, or stone absorb warmth during sunny periods and release it gradually as temperatures drop. This natural battery effect smooths out temperature fluctuations, maintaining comfort without constant heating. Proper insulation then traps this stored warmth inside, preventing heat loss through walls, roofs, and floors.
The system works through three key mechanisms:
- Direct gain: Sunlight enters through windows and warms interior surfaces and thermal mass directly
- Indirect gain: Sun heats a thermal storage wall (like a Trombe wall) which radiates warmth into living spaces
- Isolated gain: Sunspaces or conservatories collect heat separately, then distribute it through vents or openings
Shading devices complete the passive solar toolkit. Overhangs, awnings, or deciduous trees block high summer sun whilst permitting low winter sun to penetrate. This seasonal adjustment happens automatically based on the sun’s changing angle, requiring no energy input or manual control.
The distinction between passive and active solar matters for planning and costs. Active systems like photovoltaic panels generate electricity but need installation, maintenance, and grid connection. Passive design builds efficiency into the structure itself, working silently with no moving parts or ongoing costs beyond the initial construction choices.
Key components and design elements in residential passive solar homes
Effective passive solar design relies on five interconnected elements that work together to regulate temperature and light naturally.
- Building orientation and layout: Position your home’s longest axis east to west, placing most windows on the south-facing wall. This maximises winter sun exposure whilst minimising heat loss from north-facing surfaces. Living areas benefit most from southern placement, whilst utility rooms and storage suit northern zones.
- High-performance glazing and window placement: Double or triple-glazed windows with low-emissivity coatings reduce heat loss whilst admitting sunlight. Aim for 60-70% of total glazing on the south elevation, 10-15% north, and minimal east-west windows to avoid summer overheating. Window-to-floor ratios between 15-25% typically balance light and thermal performance.
- Thermal mass materials: Thermal mass materials such as concrete or brick absorb and release heat to maintain indoor temperatures effectively. Locate thermal mass where direct sunlight strikes it, typically as exposed concrete floors, internal brick walls, or stone features. A minimum thickness of 100mm ensures adequate heat storage capacity.
- Comprehensive insulation: Well-insulated walls, roofs, and floors prevent collected heat from escaping. Current UK Building Regulations recommend U-values of 0.18 W/m²K for walls and 0.11 W/m²K for roofs, but passive solar homes often exceed these standards. Insulation works with thermal mass to create a stable indoor climate.
- Adjustable shading systems: External shading proves more effective than internal blinds, blocking heat before it enters. Fixed overhangs sized to the sun’s seasonal angle provide automatic control. Adjustable options like external shutters or retractable awnings offer flexibility for variable weather. Deciduous trees planted south of the building shade summer sun whilst permitting winter light after leaves drop.
Pro Tip: Avoid placing thermal mass materials against exterior walls where they’ll lose heat outdoors. Position them in the interior where they can radiate warmth into living spaces throughout the evening.
The table below compares passive solar elements for different property types:
| Element | New Build | Retrofit Flat | Retrofit House |
| — | — | — |
| Orientation | Full control | Fixed, adapt windows | Fixed, adapt windows |
| Glazing | Optimised placement | Upgrade existing | Add south windows |
| Thermal Mass | Built-in floors/walls | Limited options | Expose existing mass |
| Insulation | Exceeds standards | Wall/roof upgrades | Wall/loft upgrades |
| Shading | Integrated overhangs | Awnings/blinds | Awnings/trees |
When planning these elements, consider your local climate and site conditions. Shading from neighbouring buildings, trees, or terrain affects solar access. A solar system buying checklist approach helps assess your property’s solar potential before committing to design changes. Some homes benefit from alternative skylight solutions that bring natural light to north-facing rooms without excessive heat loss.

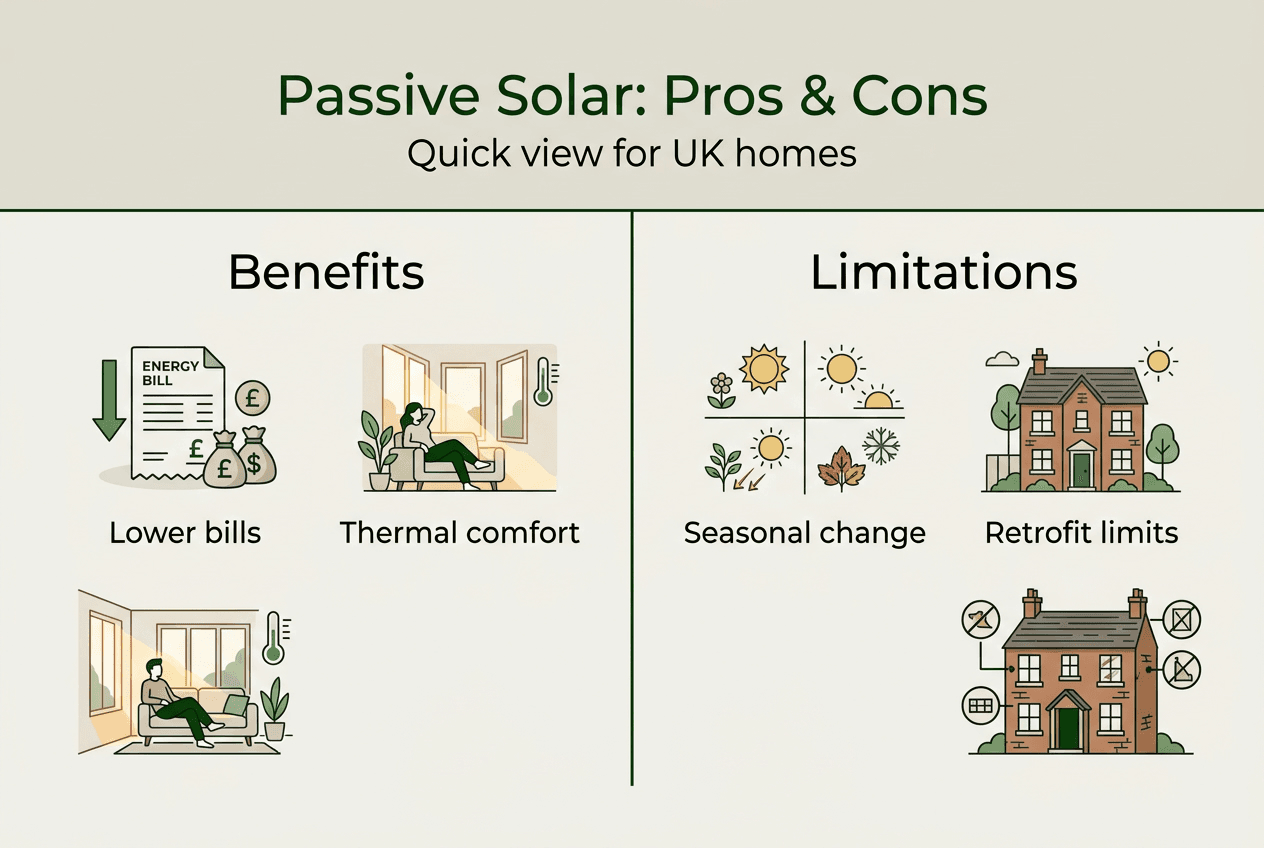

Benefits and limitations of passive solar design in UK and European climates
Passive solar design delivers measurable advantages for UK and European homeowners willing to invest in thoughtful architectural planning.
The primary benefit centres on energy cost reduction. Homes incorporating passive solar principles can cut heating bills by 30-50% compared to conventionally designed properties. This saving compounds annually as energy prices rise, improving long-term financial returns. Reduced reliance on fossil fuel heating also lowers your carbon footprint, supporting climate goals without requiring active renewable energy systems.
Thermal comfort improves noticeably in passive solar homes. Natural temperature regulation creates fewer hot and cold spots, maintaining steadier conditions throughout the day. Abundant natural light reduces artificial lighting needs, cutting electricity costs whilst improving wellbeing and mood during darker months.
Maintenance demands remain minimal since passive systems have no mechanical components to service, replace, or repair. Once built correctly, the design functions indefinitely without ongoing costs. This contrasts sharply with active heating systems requiring regular servicing, part replacement, and eventual renewal.
Environmental benefits extend beyond carbon reduction. Passive solar homes typically use fewer materials over their lifetime since heating equipment needs less frequent replacement. The approach aligns with circular economy principles, maximising resource efficiency through design rather than technology.
However, realistic limitations exist, particularly in UK and European contexts:
- Climate variability: The UK’s cloudy, temperate maritime climate provides less consistent solar gain than sunnier regions. Winter days offer limited sun hours, reducing passive heating potential compared to Mediterranean climates.
- Overheating risk: Poorly designed passive solar homes can overheat during sunny spring and autumn days when heating isn’t needed but solar gain remains high. This requires careful shading design and adequate ventilation.
- Retrofit constraints: Existing homes face fixed orientations and layouts that limit passive solar optimisation. Structural changes prove costly and may not achieve the same performance as purpose-built designs.
- Planning restrictions: Conservation areas, listed buildings, and local planning policies may restrict window changes, extensions, or external shading devices needed for optimal passive solar performance.
Design adaptations address many limitations. Cross-ventilation strategies using openable windows on opposite walls purge excess heat during warm periods. Night-time ventilation cools thermal mass ready for the next day. Combining passive design with mechanical ventilation with heat recovery (MVHR) systems maintains air quality whilst retaining warmth.
Pro Tip: Balance solar gain and heat loss by ensuring your insulation standards exceed minimum requirements. Well-insulated homes retain captured solar heat far longer, maximising benefit from limited UK winter sun.
Passive solar homes can reduce heating bills significantly but require careful planning to avoid overheating and heat loss.
Seasonal performance varies considerably. Winter provides the greatest benefit as low-angle sun penetrates south-facing windows whilst outdoor temperatures create maximum heating demand. Summer requires active management through shading and ventilation to prevent discomfort. Spring and autumn present challenges as solar gain may exceed heating needs on sunny days yet prove insufficient during cloudy spells.
Applying passive solar design principles to your home or apartment
Implementing passive solar strategies depends on whether you’re building new, renovating extensively, or making modest improvements to an existing property.
Start by assessing your property’s solar potential. Check your home’s orientation using a compass or smartphone app. South-facing elevations offer the best passive solar opportunities in the Northern Hemisphere. Evaluate shading from trees, neighbouring buildings, or terrain features that block winter sun. Consider your property type since flats face more constraints than detached houses.
For new builds, integrate passive solar principles from initial design:
- Site the building: Orient the longest axis east-west with main living spaces facing south.
- Plan the layout: Place bedrooms and utility rooms on north elevations where lower temperatures suit their function.
- Specify materials: Choose exposed concrete floors or internal masonry walls for thermal mass in areas receiving direct sunlight.
- Design glazing: Concentrate windows on south elevations with minimal north-facing glass. Specify high-performance double or triple glazing.
- Add shading: Calculate overhang depths to block summer sun whilst admitting winter light, or plan for deciduous tree planting.
- Exceed insulation standards: Specify wall, roof, and floor insulation beyond Building Regulations minimums to retain captured heat.
Retrofit projects require pragmatic compromises. You cannot change your home’s orientation, but you can optimise existing features. Even small adjustments in window treatments and shading can enhance passive solar performance in existing homes.
Retrofit strategies include:
- Upgrade glazing: Replace single-glazed windows with high-performance double glazing, prioritising south-facing elevations
- Add thermal mass: Expose existing concrete floors by removing carpet, or add internal masonry features where sunlight strikes
- Improve insulation: Upgrade loft, wall, and floor insulation to retain solar heat longer
- Install shading: Fit external awnings, shutters, or plant deciduous trees to control summer solar gain
- Enhance ventilation: Add trickle vents or openable windows on opposite walls for cross-ventilation
Pro Tip: Choose materials suited to UK weather patterns. Dense materials like brick and concrete work well for thermal mass, whilst breathable insulation materials manage moisture effectively in our damp climate. Prefab homes for cold climates demonstrate how material selection affects thermal performance.
Seasonal adjustments maximise year-round comfort. During winter, keep south-facing curtains open during daylight to admit solar gain, then close them at dusk to reduce heat loss through glass. Clean windows regularly to maximise light transmission. In summer, deploy external shading during peak sun hours and open windows at night to purge stored heat from thermal mass.
The table below shows typical energy savings by retrofit type:
| Retrofit Type | Estimated Annual Saving | Payback Period | Difficulty |
|---|---|---|---|
| Glazing upgrade (south) | £150-300 | 8-15 years | Moderate |
| External shading | £50-100 | 3-7 years | Low |
| Loft insulation | £200-350 | 2-4 years | Low |
| Wall insulation | £300-500 | 5-10 years | High |
| Exposed thermal mass | £100-200 | 5-8 years | Moderate |
Ventilation deserves particular attention in passive solar homes. Adequate airflow prevents moisture buildup and removes excess heat. Openable windows on opposite walls create cross-ventilation, whilst high-level openings allow hot air to escape naturally. Mechanical ventilation with heat recovery systems suit well-sealed, highly insulated homes where natural ventilation proves insufficient.
Explore solar solutions with Beyond The Urban
Passive solar design forms just one part of a comprehensive energy strategy. Beyond The Urban helps UK and European homeowners understand the full spectrum of solar opportunities, from architectural design to active photovoltaic systems. Our solar energy hub provides detailed guides on panel efficiency, battery storage, and grid integration tailored specifically for British and European conditions.
If you’re working with limited roof space, our guide to the best solar panel systems for small roofs shows how to maximise output from compact installations. Planning a complete solar installation? Use our solar system buying checklist to evaluate products, compare quotes, and avoid common pitfalls. Combining passive solar design with active solar technology creates homes that generate energy whilst using less, delivering maximum savings and energy independence.
Frequently asked questions
What is passive solar design?
Passive solar design uses a building’s orientation, windows, and materials to naturally collect, store, and distribute solar heat without mechanical systems. It reduces heating and lighting needs through architectural choices rather than technology.
How does passive solar differ from active solar systems?
Passive solar relies on building design to capture sunlight for heating and lighting, requiring no equipment or energy input. Active solar systems use photovoltaic panels or solar thermal collectors to generate electricity or hot water, needing installation, maintenance, and often grid connection.
Can I retrofit passive solar design to my existing home?
Yes, though with limitations compared to new builds. You can upgrade glazing, improve insulation, add external shading, expose thermal mass floors, and enhance ventilation. Fixed orientation restricts optimisation, but meaningful improvements remain possible.
Does passive solar design work in the UK climate?
Passive solar design functions effectively in UK climates with proper adaptations. The approach works best when combined with excellent insulation to retain limited winter solar gain. Shading and ventilation strategies prevent overheating during sunnier periods.
What benefits does passive solar design offer beyond energy savings?
Passive solar homes provide improved thermal comfort with fewer temperature fluctuations, abundant natural light that enhances wellbeing, minimal maintenance since there are no mechanical systems, and reduced carbon emissions from lower heating demand. The design also increases property resilience during energy supply disruptions.
